35.39114554-0000 - Tube 90 - Naked module - HO 150mA - transit wired - Frosted

Fixture details

Mounting Ceiling recessed
Light emission Direct
Fitting cover Satin diffusor
Protection rate IP 65
Housing Polycarbonate
Finish Frosted

Lamp details

Lamptype LED 4000K
Wattage 3,2W
Gross luminous flux 3350
Luminaire power 17,6W
Number 5
Lifetime LED module L80/B10 > 72000h
Color tolerance MacAdam 3
CRI >80

Electric details

Protection class I
Supply 230V
Control gear box Current driver DALI/TD

Protection

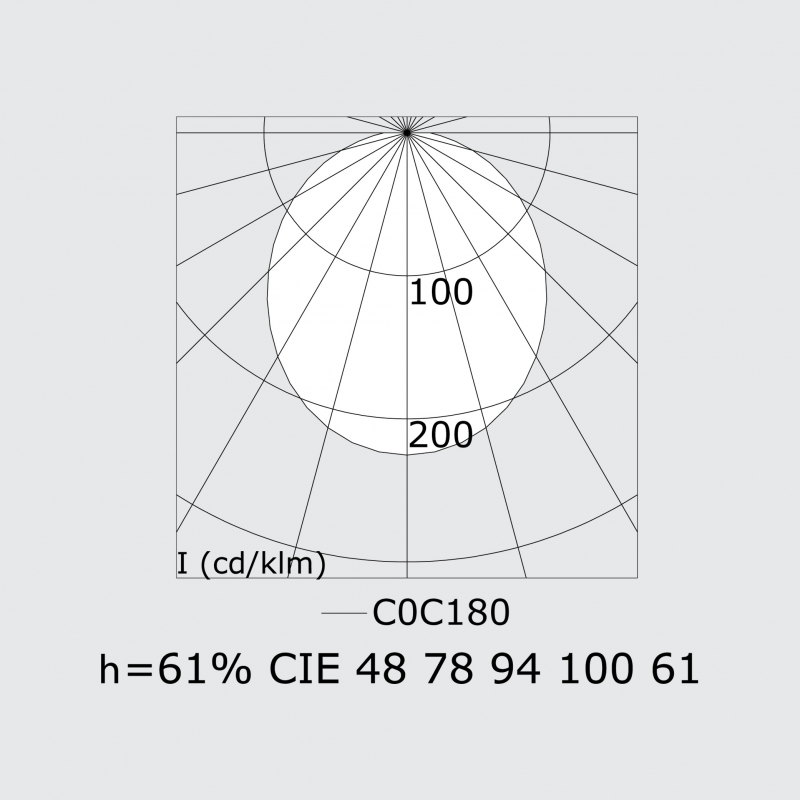

CIE Fluxcode 48 78 94 100 61

Dimensions

A 1410 mm

Downloads

30.61009-0000 - Female connector 3-pole IP68

30.61010-0000 - Female connector 5-pole IP68

30.61011-0000 - Female connector 5-pole DALI IP68

30.61015-0000 - Connector set female+male 3-pole IP68

30.61016-0000 - Connector set female+male 5-pole IP68

30.61017-0000 - Connector set female+male 5-pole DALI IP68
